Product description: Glass Laser Marking Machine
INQUIRY

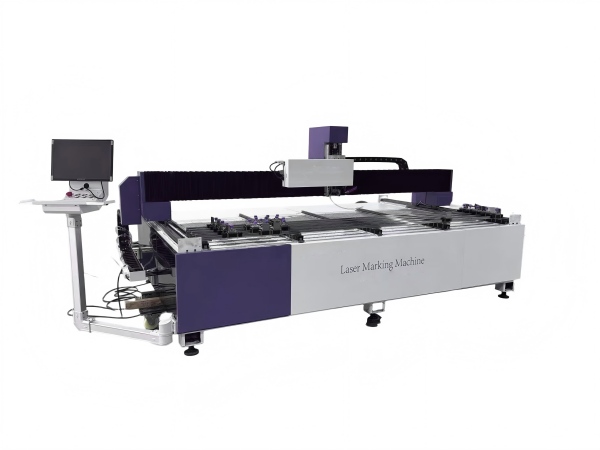

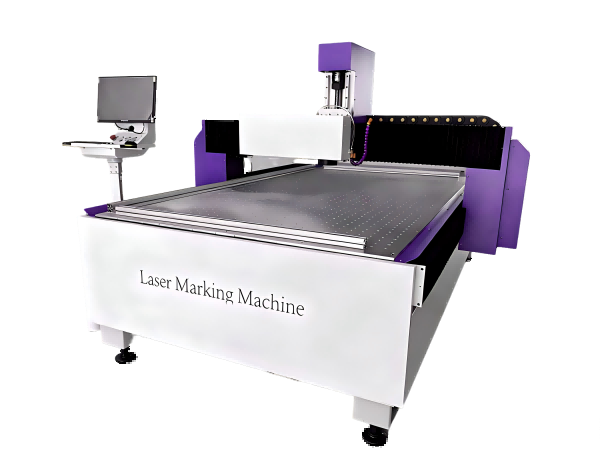

Glass Laser Marking Machine

ASW-L1200 Machine

1. Equipment Characteristics
The laser sandblasting machine performs precise processing on the material surface through high-energy laser beams, is widely used in glass and mirror processing fields, and has the advantages of high precision, high efficiency and non-contact.

2. Working Principle
The Laser Sandblasting Laser Marker adopts sub-nanosecond fiber laser to output laser, then realizes marking and sandblasting functions through high-speed scanning galvanometer system. The sub-nanosecond fiber laser marker has high electro-optical conversion efficiency, uses water cooling method, compact overall size, good output beam quality and high reliability; ultra-long operating life, energy conservation and environmental protection, with superior performance such as high efficiency, long life and maintenance-free that traditional lasers do not have.

MainTechnical Parameters

Category

Item

Parameter

Laser Characteristics

Laser Power

120/200W

Laser Wavelength

1064nm

Repetition Frequency

0—100KHz

Spot Diameter

≤12

Beam Quality

m2≤2

Power Stability Peak

≤5%rms

Safety Grade

Class IV

Marking Parameters

Engraving Line Speed

≤12000mm/s (depending on engraving material)

Minimum Character

0.15mm

Minimum Line Width

0.05mm

Engraving Range

70*70mm

Repeatability

±0.02mm

Other Parameters

Cooling Method

External Water Cooling

Control Interface

USBStandard USB

File Format

DXF/AI/PLT/CDR

Operating System

Win7/Win10

Environmental Requirements

±5-30°

Power Supply

Single-phase AC 90-260V/50Hz-60Hz

Total Power

2KW

Total Weight

1000KG

Equipment Dimensions

300024001600mm

Safety Protection Grade

IP54

sample display
