产品描述：Glass Laser Marking Machine
在线订购

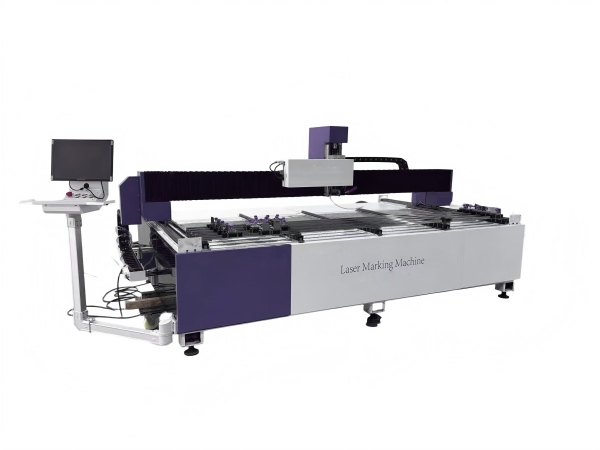

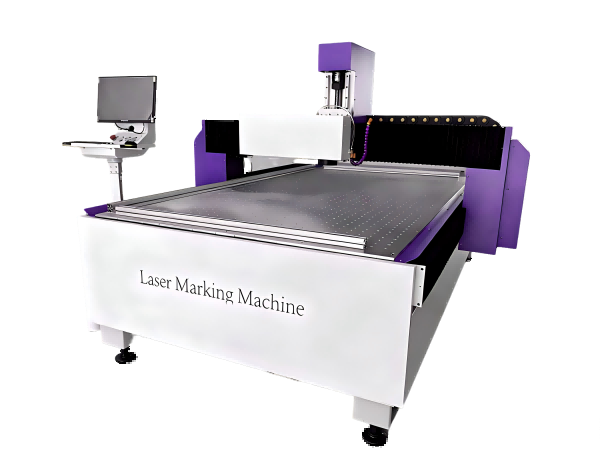

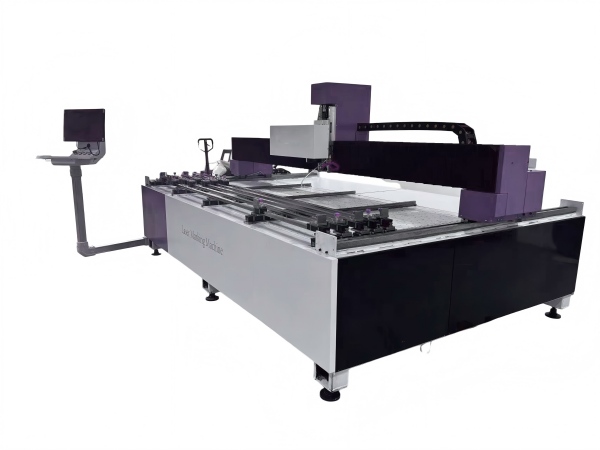

Glass Laser Marking Machine

ASW-L1200 Machine

1. Equipment Characteristics
The laser sandblasting machine performs precise processing on the material surface through high-energy laser beams, is widely used in glass and mirror processing fields, and has the advantages of high precision, high efficiency and non-contact.

2. Working Principle
The Laser Sandblasting Laser Marker adopts sub-nanosecond fiber laser to output laser, then realizes marking and sandblasting functions through high-speed scanning galvanometer system. The sub-nanosecond fiber laser marker has high electro-optical conversion efficiency, uses water cooling method, compact overall size, good output beam quality and high reliability; ultra-long operating life, energy conservation and environmental protection, with superior performance such as high efficiency, long life and maintenance-free that traditional lasers do not have.

MainTechnical Parameters

Category	Item	Parameter
Laser Characteristics	Laser Power	120/200W
	Laser Wavelength	1064nm
	Repetition Frequency	0—100KHz
	Spot Diameter	≤12
	Beam Quality	m2≤2
	Power Stability Peak	≤5%rms
	Safety Grade	Class IV
Marking Parameters	Engraving Line Speed	≤12000mm/s (depending on engraving material)
	Minimum Character	0.15mm
	Minimum Line Width	0.05mm
	Engraving Range	70*70mm
	Repeatability	±0.02mm
Other Parameters	Cooling Method	External Water Cooling
	Control Interface	USBStandard USB
	File Format	DXF/AI/PLT/CDR
	Operating System	Win7/Win10
	Environmental Requirements	±5-30°
	Power Supply	Single-phase AC 90-260V/50Hz-60Hz
	Total Power	2KW
	Total Weight	1000KG
	Equipment Dimensions	300024001600mm
	Safety Protection Grade	IP54
